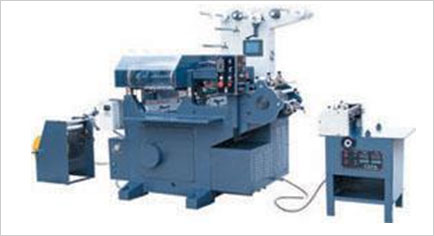

Computer type inclined back label printing machine

1.Using inclined back design, printing and die cutting in a gradual manner in mechanical drive in contact, to an average pressure, printing color or small words can clear.
2.A simple, easy to set-up in the loss of testing-run materials reduction, greatly reduce the production cost of label.
3.Easy to operate, solve the problem of the printing technology staff shortages.
4.Using variable frequency speed regulation system of Taiwan, printing speed can be adjusted conveniently.
5.Reel materials from printing, laminating, die-cutting, waste discharge to the slice can be done at a time.
6.The fuselage for whole casting, stability, durability is better.
7.Puller type printing machine computer operation more convenient, and can be printed 2 times.
8.All steel transfer ink roller adopt hard chromium plating processing, not easy to rust, ink transfer accuracy is higher.
9. Main shaft bearing structure adopts hard alloy copper tile, with automatic oil supply system, greatly improving the mechanical precision and durability.
10. Machine also can be mounted to the vertical side hole device, horizontal drilling device, the computer hot stamping device, and optional UV ink printing way

models

4180

4210

4230

Printing blank area

180X320mm

210X390mm

230X390mm

The biggest printing area

2color

170X140mm

200X170mm

220X170mm

3color

170X95mm

200X120mm

200X120mm

4color

170X70mm

200X85mm

220X85mm

Largest paper width

180mm

210mm

230mm

Largest paper length

150mm

180mm

180mm

Most die cutting area

170X170mm

200X180mm

220X180mm

Printing speed

50-200Print/min

50-200Print/min

50-200Print/min

Mechanical dimensions

2100*1100*1650mm

2100*1100*1650mm

2100*1100*1650mm

Machine Weight Net

2200kg

2800kg

3000kg

 Host Motor

2.2KW

2.2KW

2.2KW

Suction motor

0.375KW

0.6KW

0.6KW

Power Motor ( main motor )

3kw

2.2kw

2.2kw

Suction motor

0.6kw

0.6kw

0.375kw

Note:Printing speed depending on the length of printing materials, printing and printing quality requirements
